2 sine wave and 2 square wave output

AD9850: 0-40MHz

After the 20-30MHz frequency harmonics increases, the waveform will be less and less clean

Square Wave: 0-1MHz

Low-pass filter with 70MHz, so the waveform better than SN

Parallel and serial data input can be selected via a jumper

DA produced the benchmark pin (PIN12) leads for easy adjustment to do the magnitude of the output waveform Application

Comparator reference input voltage generated by the variable resistor, the resistor can be adjusted duty cycle square wave of different

Active AD9850 125MHz crystal oscillator modules

Package includes:

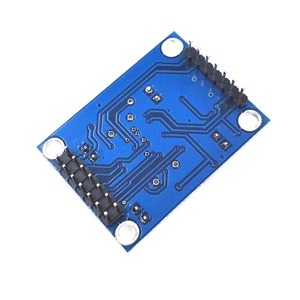

1 X AD9850 DDS Signal Generator Module(0-40MHz)
