2.4" diagonal touch screen LCD TFT display

Bright, 4 white-LED backlight, on by default but you can connect the transistor to a digital pin for backlight control

Colorful, 18-bit 262,000 different shades

4-wire resistive touch screen

8 bit digital interface, plus 4 control lines

Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the micro SD

5V compatible, use with 3.3V or 5V logic

For Arduino UNO R3

Color: Red

Size: 72 x 52 x 12 mm

Weight: 33g

Demo Data and Libray code download -

2.4inch_Arduino_HX8347G_V1.0.zip

Package includes:

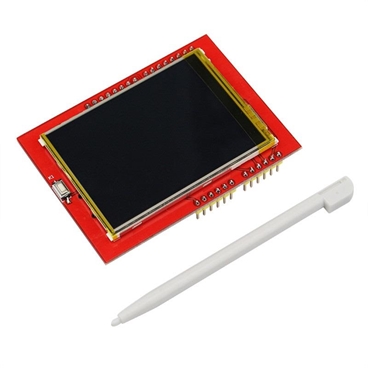

1pc X 2.4 Inch TFT LCD Shield Touch Board Display Module For Arduino UNO

Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 0.00

Std. Packing Qty. (pcs): 1
