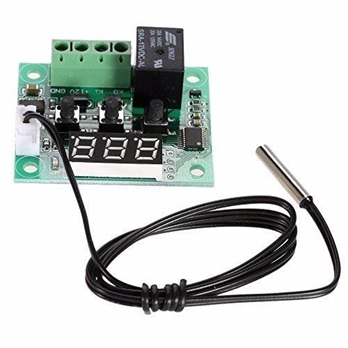

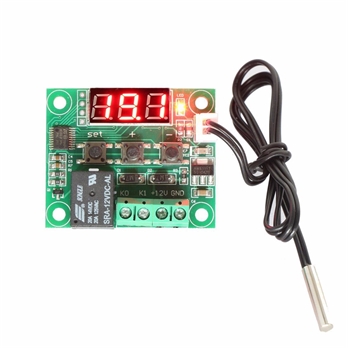

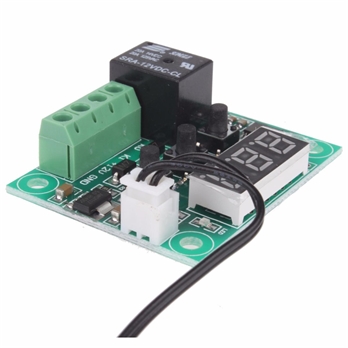

W1209 digital temperature thermostat control switch sensor module
Temperature range :-50-110 ℃

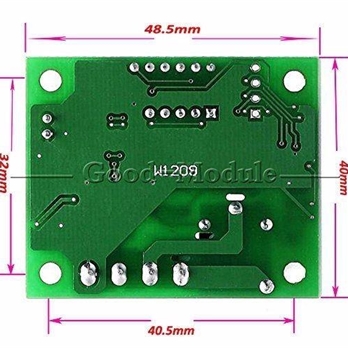

Dimensions: 48.5 * 40mm
Temperature control mode: ON / OFF
Control accuracy: 0.1 ℃
Hysteresis accuracy: 0.1℃
Refresh rate: 0.5S
High temperature protection： 0-110℃
Supply voltage: DC 12V
Static current: ≤ 35MA, attract current ≤ 65MA
Output voltage: DC 12V
Output power: 20A relay
Measurement input: NTC (10K 0.5%) Waterproof Sensor
Environmental requirements: -10 ~ 60 ℃ ，
Humidity 20% -85%
Temperature range :-50-110 ℃.
Static current: ≤ 35MA,
attract current ≤ 65MA.
Environmental requirements: -10 ~ 60 ℃ ，
Humidity 20% -85%.
Relay output interface is a switch, when it working ,these two ports are connected.
Package includes:
1 X W1209 digital temperature thermostat control switch sensor module
MDL.1090
10
1pcs/lot
