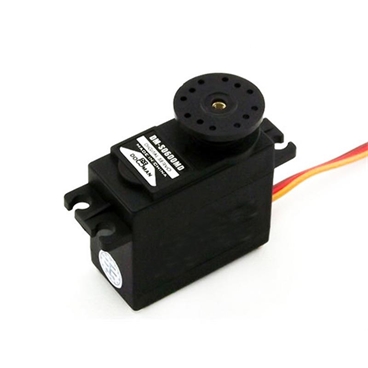

6kg.cm Torque Full Metal Gear Digital Servo Motor

Specifications:

Operating Voltage: 4.8V~6V
Speed: 0.14 sec/60deg (4.8v)
            0.12sec/60deg (6v)
Torque: 5.5kg.cm (4.8v)
             6.5kg.cm (6v)

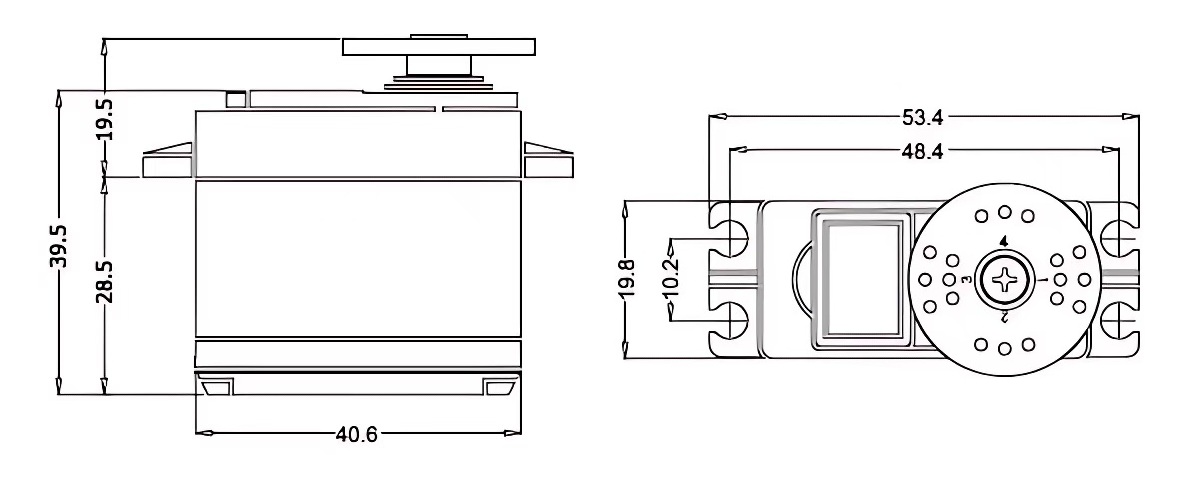

Size: 40X20X38.5mm


Weight: 56g
Motor: 3 pole Core motor

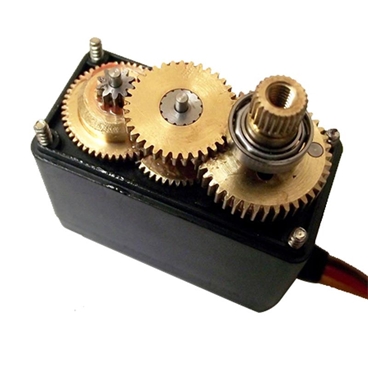

Gear Train: Full Metal Gear
Ball Bearing: 2BB
Dead band width: 4usc
Interface: (JR)
Wire length: 30cm
Type: Digital,2BB

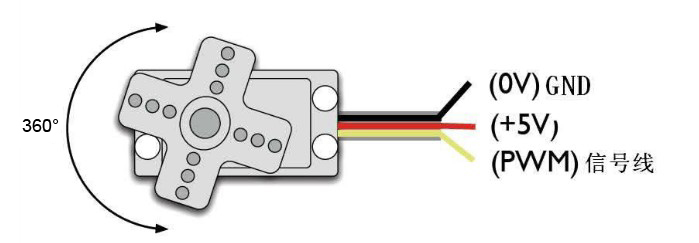

Rotation angle options:

1) 180 degree(PWM500-2500us)
2) 270 degree(PWM500-2500us)
3) 360 degree(PWM500-2500us)





Package lncludes:

1pcsX 6kg.cm Torque Full Metal Gear Digital Servo Motor

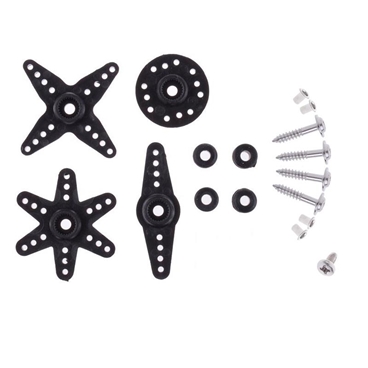

Accessaries:servo horns,rubber grommets, eyelets and mounting screws
1 x double sided servo horn
1 x 4-arm servo horn
1 x 6-arm servo horn
1 x round servo disc
4 x rubber grommets with brass inserts
4 x mounting screws
1 x mounting bolt
3 x 8mm for servo horn installation on the ball raced brass output shaft with 25T-spline drive


MTR.1100

10

1pcs/lot
