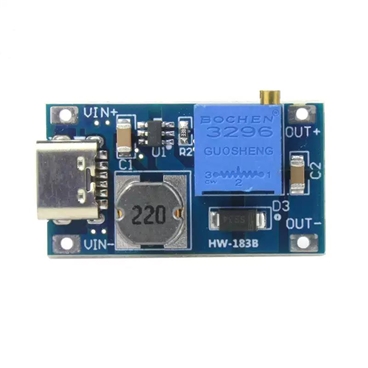

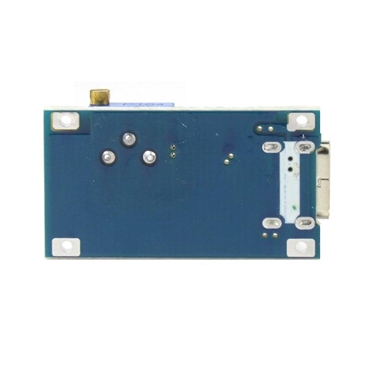

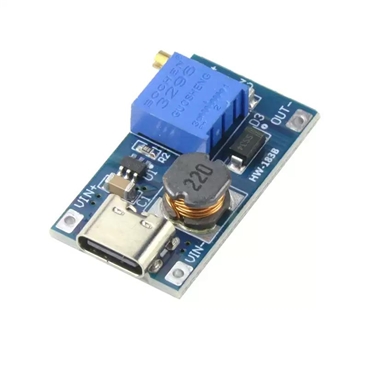

Type-C MT3608 DC-DC Adjustable Boost Module

Specifications:


  • DC-DC voltage boost converter moulde, with Type-C USB voltage input, easy to use, convenient to adjust the voltage.

  • MT3608 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload.

  • Maximum output current: 2A, it's highly recommend an add-on radiator for any application needs the module working on greater 1Amp.

  • Input voltage: 2V~15V,

  • Maximum output voltage:> 5V~28V, Efficiency: >93%.

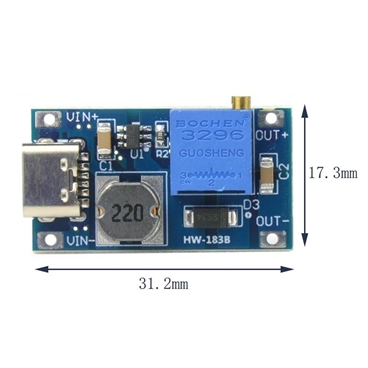

  • Dimension: 30 *17 * 6mm/1.18 * 0.65 * 0.24inch(L*W*H).


  • It can be Widely used for storage battery, power transformers, DIY adjustable regulated power supply, industrial equipment, 5V, 9V, 12V, 28V output, etc.


Important Notes:

  • this is a voltage boost module, the output voltage will be greater than the input voltage. The voltage can only be increased, not decreased compared to the input.

  • the maximum current does not exceed 2A.

  • spin the adjustable resistor 15~20 laps before taking effect.




Package includes：

1 X Type-C MT3608 DC-DC Adjustable Boost Module

MDL.1423

10

1pcs/lot
