Specifications:
Module type: Switching power supply, boost power supply
Input voltage: DC2.5~11.5V (lower than output voltage by 0.5V)
Input current: 2A (max)
Output current: determined by input, calculated according to subsequent instructions
Output voltage: DC 5/9/12V (optional)
Output power: User input voltage x1 5 (max)

Input   Voltage	Output Voltage	Max Output   Current (Amp)
3V	5V	0.9
4V		1.2
3V	9V	0.5
5V		0.84
7V		1.17
3V	12V	0.38
5V		0.63
7V		0.88
9V		1.13

Switching frequency: approximately 1.2MHz
Working mode: PWM/PFM
Quiescent current: 200ua-600ua (PFM mode)
Adjustment method: Jumper pad selection, 5/9/12V, ADJ pad adjustable
Module interface: solder pad (capable of connecting to 2. 54mm rows of pins)

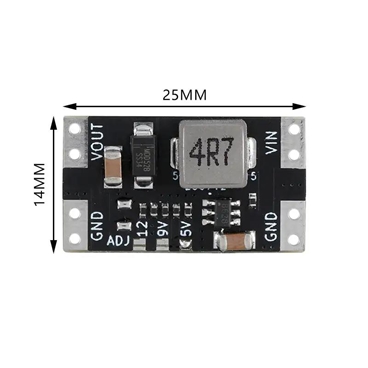

Module size: 24.4 x 13.7mm (manual measurement with deviation)

Package includes:

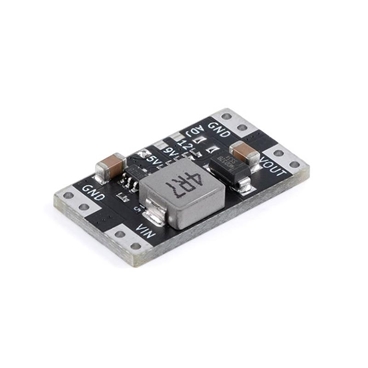

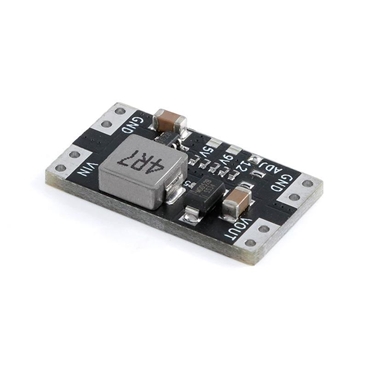

1 X Mini DC-DC Step Up Booster Supply Module

Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 0.00

Std. Packing Qty. (pcs): 1
