Specification:
Chip Type: TPA3116D2
Supply voltage: DC12~28V
Output Power: 100W
SNR: 100db
Channels: Mono
Size: 79 X 54 X 16MM

Note:
The realization of the basic functions of 5 watts speakers, it's enough to use 1A 12V power supply.
But If you want the 100w speaker, you need 3A above, 24-28V power supply.

Features:
Large capacity, chip capacitors and floor with soldering.
There is no solder joint on the back of the circuit board, so there is no possibility of causing a short circuit.
Chip capacitors selected components and production process costs are higher than the plug capacitor.
TPA3116D2 efficient Class D operation, both greater than 90% power efficiency.
Low idle loss characteristics, advanced modulation system configuration, multiple switching frequency, AM interference block.
TPA3116D2 for short circuit, overvoltage, overheating, undervoltage, DC and other failures to provide a comprehensive protection.
In the event of an overload, the device warns the processor of the fault condition, thereby preventing itself from being damaged.

Package Includes:

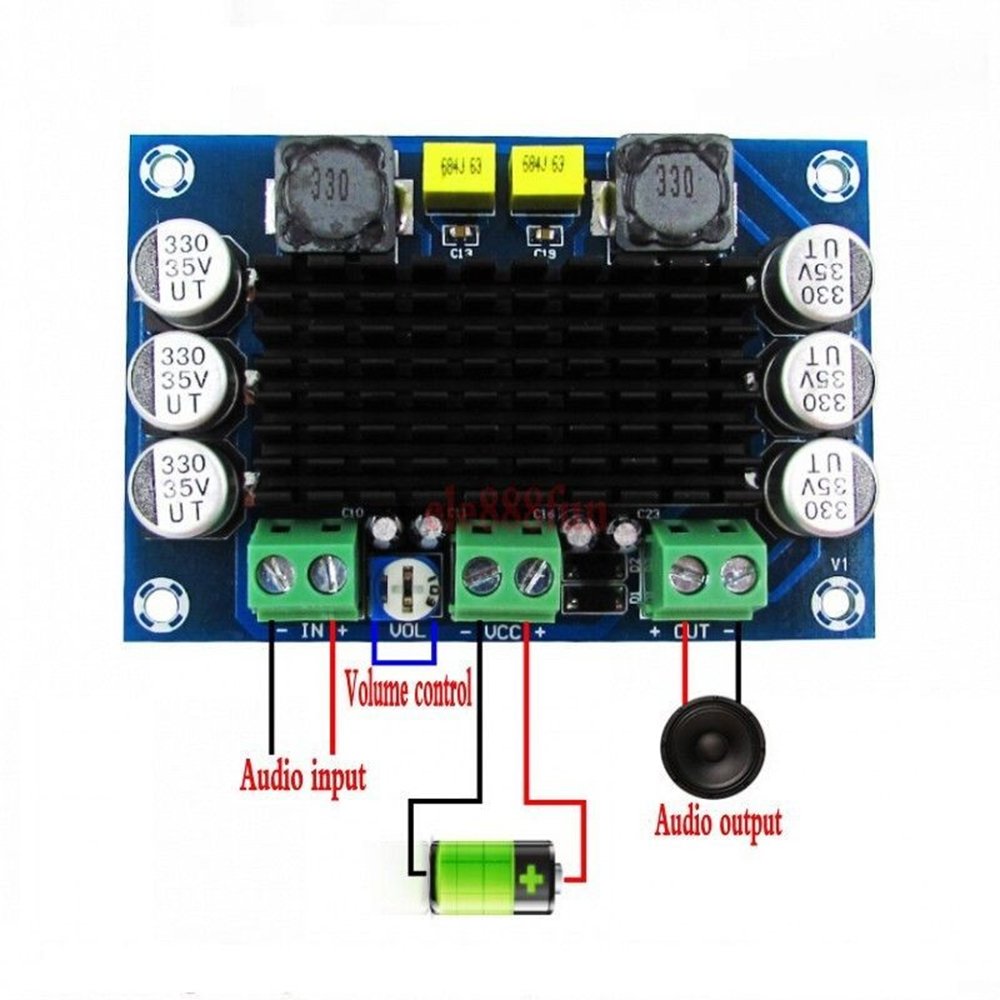

1 X DC 12V 24V 100W TPA3116DA Mono Channel digital Power Audio Amplifier Board

Note: all the descriptions and prices are subject to change without prior notice.
