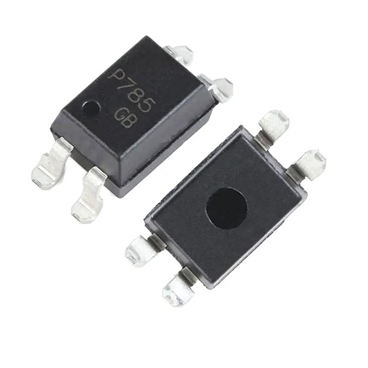

TLP785GB SOP4 transistor optocoupler
Specifications:
| Package | SMD-4P | |
| Output Current | 80mA | |
| Rise time | 2us | |
| Fall time | 3us | |
| Vce Saturation(VCE(sat)) | 400mV@2.4mA,8mA | |
| Operating Temperature | -55℃~+110℃ | |
| Load Voltage | 80V | |
| Reverse Voltage | 5V | |
| Current transfer ratio | 600%;50% | |
| Voltage - Forward(Vf) | 1.15V | |
| Forward Current(If) | 16mA | |
| Number of Channels | 1 | |
| Load Type | Phototransistor | |
| Input type | DC | |
| Isolation Voltage(Vrms) | 5kV |
Datasheet Download:
Package includes:
1 X TLP785GB SOP4 transistor optocoupler
CPT.1527
10
1pcs/lot
