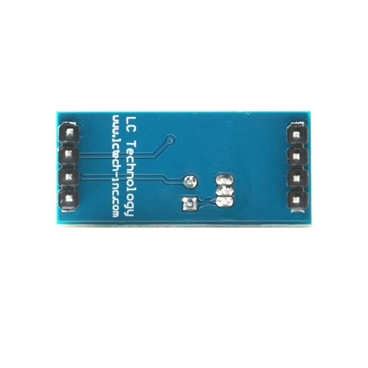

Features:

1.  On-board TLC5615 chip, TLC5615 is a digital-to-analog converter with  serial interface, its output is voltage type, the maximum output voltage  is twice the reference voltage value, with power-on reset function, the  performance is better than the early current output DAC  is good, only need to serial input of 10-bit data through 3 serial  buses, easy to interface with industry standard microprocessor or  microcontroller (microcontroller)
2. On-board TL431 voltage reference chip, can also be connected to the external reference voltage
3. All the pins of the chip have been taken out, which can be controlled by the single chip microcomputer.
4. Working voltage: 5V
5. Board size: 30.2 (mm) x 13.8 (mm)

Package includes:

1 X TLC5615 10 Bit Serial DAC Digital to Analog Conversion Module TL431 IC Converter 5V Power Supply Module

Note: all the descriptions and prices are subject to change without prior notice.
